8.25. R250 Laser sensor data display

8.25. R250 Laser sensor data display



This function is to display the message box to check the sensor data when the laser vision sensor is used.

Refer to 『Hi5 Controller LVS Tracking Function Manual』for more details.

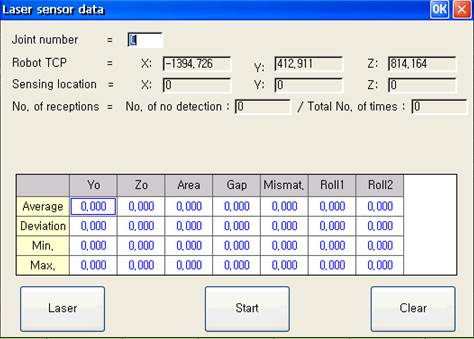

(1)   Press the [R..(NO)] → [250] → [ENTER (YES)] keys. Then, the following message box will be executed to display the laser sensor data as shown below.





(2)   Press the [Start] button. Then, the sensor will be activated







l This function can be operated normally when the laser vision sensor is installed. .



l The LVS tracking function can be operated only in a controller in which the license is entered. .
