8.23. R225Servo hand squeeze force setting

8.23. R225Servo hand squeeze force setting​



This is function to allow that user can manually set applied pressure of Servo hand when performing Robot work by using a Servo hand.



(1)   Following screen is displayed if pressing the [R..(NO)] key → [225] → [ENTER (YES)] key.





(2)   Press the [ENTER (YES)] key after inputting applied pressure to hand with the [Number] key.







l  This function cannot be used when Robot operates.



l To be used only when there is an additional axis that is set for a servo hand



l  Palletizing item in 『[F2]: System』 → 『5: Initialize』 → 『3: Usage setting』must be set to “Enable”.

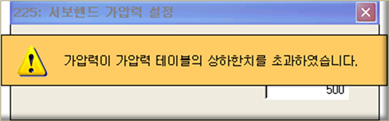

l  When the servo hand pressurization force to set exceeds the range of the table set in 『[F2]: System』 → 『4: Application parameter』 → 『3: Palletizing』 → 『3: Servo hand parameter』 → 『Squeeze force-Current table』, a message saying “Squeeze force exceeds the maximum or the minimum value of a squeeze force table.” Will be displayed.
