8.1. R Code

8.1. R Code



R-code is function equivalent to the [R..(NO)] of teaching pendant. (R means 『Reset』and 『Rapid』)

This function enables to rapidly manipulate operation procedure such as contents modify of program or change of controller setting status by abbreviating them to one service code.

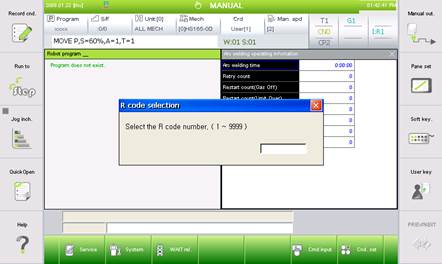

(1)   When you press the [R..(NO)] key, the edit box shown as the following is displayed on the main screen.





(2)   Relevant function is executed if inputting desired code number and then pressing the [ENTER (YES)] key.



(3)   The following screen is displayed when pressing the [Help] key in the above screen. In this screen, the function can be executed by using a cursor key or inputting numbers





(4)   Press the [F5] key, and the code in the follow screen will be continuously displayed.
