4.2.7.2. PLC Y Relay (External Output)

4.2.7.2. PLC Y Relay (External Output)​



This displays the state of the signals outputted through the standard/extension IO board and the state of the embedded DeviceNet master output signals.



In manual or auto mode initial screen, select『[F1]: Service』 → 『1: Monitoring』→『7: PLC relay data』→『2: PLC Y Relay (External output)』

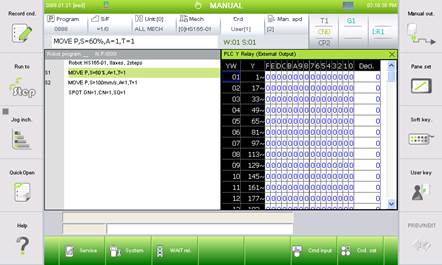

Figure 4.26 PLC Y Relay (External Output)



The explanation of the F menu at the bottom is the same as the details of [PLC X Relay (External input)].
