4.11. Teach pendant option

4.11. Teach pendant option



This is the screen to set only the function related to the user interface of the teach pendant itself.



(1)   Select 『[F1]: Service』 → 『11: Teach pendant option』.

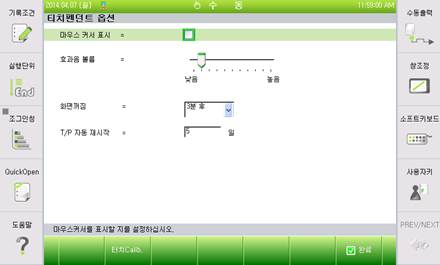

Figure 4.140 Teach pendant options setting



n Mouse cursor display

Even though you can execute all the operations using the key pad and touch screen, you can connect the mouse to the USB terminal at the bottom of the teach pendant. At this time, check this option so that the cursor of the mouse can be displayed.



n Sound volume

This adjusts the volume of the sound effect generated through the speakers of the teach pendant.



n Screen-off

If there is no input by the user within the preset time, the screen will change to the saving mode, turning off the screen of the teach pendant.



n T/P automatic restarting

The teach pendant will be restarted automatically after a designated date in order to clean the memory (there is no impact on the robot operation). When it is time for a restart, a countdown will be displayed on the screen. Even when a restart is pending, it will be postponed for a short while if the user is working on the keypad.



(2)   After an option is set, press the『[F7]: Complete』 key. The setting information will be saved in the teach pendant and not in the main board.
