4.2.12. Arc welding data

This function displays the data and states when carrying out arc welding.

Can be used by selecting『[F1]: Service』→『1: Monitoring』→『13: Arc welding data』.

Pressing the [F5] button from each monitoring screen will cycle through the monitoring screens as shown below.

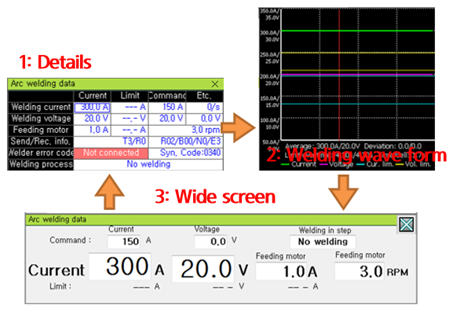

Figure 4.42 Arc welding data monitoring screen shifting

l Arc Welding data monitoring function will displays different contents according to the selected arc welding settings.

l Carry out the arc welding setting by selecting 『[F2]: System』→ 『5: Initialize』→ 『3: Usage setting』

l Please refer to the “Hi5 Controller Arc Welding function manual” for the detailed information
