4.2.6. Palletize data

4.2.6. Palletize data



This displays the work status, the pattern register number, the palletize counter, the total count of workpieces, and the workpiece size.



Can be entered by selecting『[F1]: Service』 → 『1: Monitoring』→『6: Palletize data』.

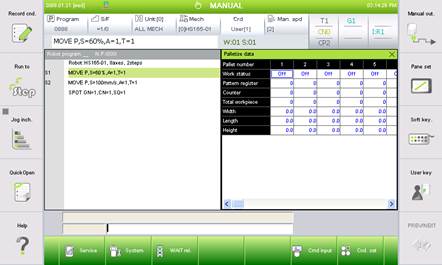

Figure 4.23 Palletize data monitoring



For the items that are not seen, select the “Palletize data” window, and then press [Þ](+[SHIFT]) or[ß](+[SHIFT]) key or move the scroll bar to check the desired items.







l For palletization data monitoring, the palletization of 『[F2]: System』 → 『5: Initialize』 → 『3: Usage setting』 must be selected to <Enable>.



l For more details. refer to 『Hi5a Controller Palletize Function Manual』
