4.2.13. Operating information

4.2.13. Operating information



This displays the operating information of the controller. It displays the information regarding the accumulation after system initialization, the accumulation after power on, and the recent cycle.



Can be used by selecting [F1]: Service1: Monitoring14: Operating information.

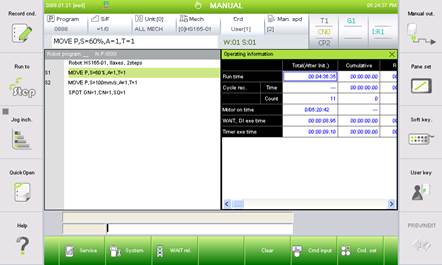

Figure 4.43 Operating information



l Operating information clear

When the [Operating information] monitoring window is selected and activated, the [F5]: Clearbutton will be displayed. Pressing this button will bring up the following dialog box. Carry out initialization by pressing the appropriate button in the dialog box.





Figure 4.44 Operating information clear dialog box



Table 42 Reflected timing

All

(After resetting)

Measured time

Operation time from system reset to now

Motor ON time

Motor ON time from system reset to now

Accumulative

Measured time

Operation time from power ON to now

Cycle recording time

Operation time from power ON to previous cycle

Latest

Measured time

Operation time from start of cycle (Or power ON) to now

Cycle recording time

Operation time from start of cycle (Or power ON) to previous cycle
