4.2.9. Various data

4.2.9. Various data



This is the function to prepare the list of data you want and monitor in one window.



(1)    Can be used by selecting『[F1]: Service』 → 『1: Monitoring』 →『11: Various data』.





Figure 4.39 Various data monitoring





(2)    Set the cursor on the most left column and press the, [Soft keyboard] key to enter the name of the data.

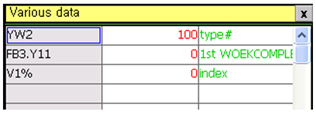

(3)    The current value for the entered data is displayed respectively. For data of which a note is set, the note is automatically displayed as well.





(4)    For integer data, the current value is displayed in decimal format. If you add a suffix of “,x” at the end, it can be displayed in hexadecimal format.







(5)    You can also adjust the current data value. Place the cursor on the current value, press the [ENTER] key, and enter a new value. Then, press the [ENTER] key again.





(6)    When you press the 『[F1]: +』key, a blank item will be added right on top of the current cursor.



(7)    When you press the 『[F2]: x』key, the currently selected item will be deleted.



(8)    When you press the 『[F4]: Ý』/『[F5]: ß』key, the order of the currently selected item moves up/down.



(9)    When you press the 『[F6]: 』key, the entered condition is saved. That is, the entered condition will be saved even when the power is turned off.



(10)  When you press the 『[F7]: 』key, the page selection dialog box appears. You can create a list to be monitored using the Group Management page. A total of 10 pages are provided.
