4.2.19. Roller hemming data

4.2.19. Roller hemming data​



This displays the roller hemming squeeze and the adjustment distance when the roller hemming function is used.



Can be used by selecting『[F1]: Service』 → 『1: Monitoring』 → 『22: Roller hemming data』.



The roller hemming function can be activated by setting the function as “Enable” in 『[F2]: System』 →『4: Application parameter』 → 『12: Roller hemming squeeze control』

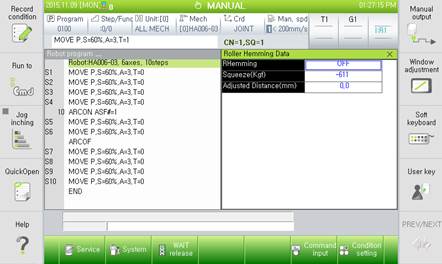

Figure 4.56 Roller hemming data







l For more details, refer to『“Roller Hemming Squeeze Control” Function Manual』.
