4.2.7. Analog Data​



This displays the analog voltage input/output through the analog input/output port of arc interface board. When using the function of 『[F2]: System』 → 『4: Application parameter』 → 『5: Speed vs. voltage output』function, the voltage output will be proportionate to the linear end speed of the robot.

Refer to 『[F2]: System』 → 『4: Application parameter』 → 『5: Speed vs. voltage output』for details.



Can be used by selecting 『[F1]: Service』 → 『1: Monitoring』 → 『8: Analog data』.

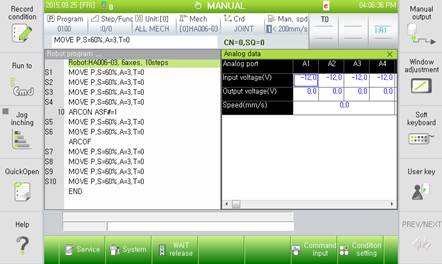

Figure 4.35 Analog data monitoring
