4.2.15. Arc welding operating information
4.2.15. Arc welding operating information
This displays the operating information of arc welding. It provides information on the accumulated welding time, the recent welding time, and the tip use time. In addition, the accumulated count of retrials and restarts that were made because of abnormal arc generation will be displayed.
Can be used by selecting 『[F1]: Service』 → 『1: Monitoring』 → 『17: Arc welding operating information』.

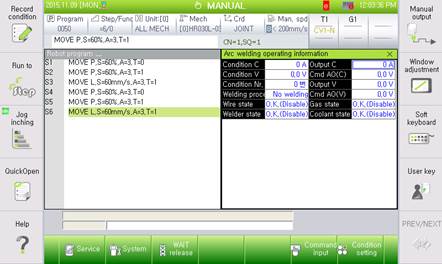

Figure 4.51 Arc welding operating information monitoring
l Arc welding operating information clear
When the [Arc welding operating information] monitoring window is selected and activated, the 『[F5]: Clear』button will be displayed. Pressing this button will bring up the following dialog box. Carry out initialization by pressing the appropriate button in the dialog box.
Figure 4.52 Arc welding operating information clear dialog box
