4.2.21. Playback speed automatic adjustment state

4.2.21. Playback speed automatic adjustment state



When the playback speed automatic adjustment function is used, it is possible to compare and check the nonoperation time, low-speed operation time, and variation of the encoder temperature with the individual reference values.



You can use the function by selecting “[F1]: Service” → “1: Monitoring” → “24: Playback speed automatic adjustment state.”

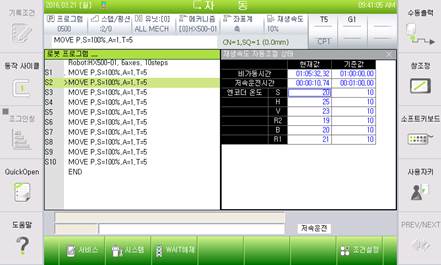

Figure 4.58 Monitoring of the playback speed automatic adjustment state





The playback speed automatic adjustment function can be activated by selecting and enabling it in “[F7]: Condition setting” → “10: Playback speed automatic adjustment.”
