4.9. Date, time setting

4.9. Date, time setting



Date and time of controller can be changed.



(1)    Selection『[F1]: Service』 → 『8: Date, time setting』.

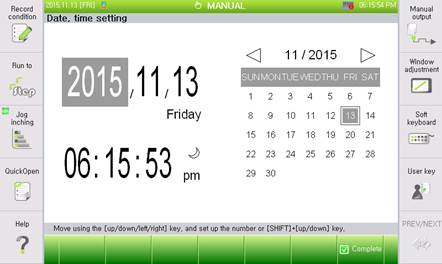

Figure 4.146 Date and time setting screen





(2)    When you press the [Ý][ß][Ü][Þ] using arrow keys, the cursor moves between year/month/day/hour/minute/second/am:pm.



(3)    Set the cursor to the item you want and press [SHIFT] + [Ý] [ß] to change the value.



(4)   You can also select a date by touching the numbers from the right-hand side of the screen calendar. If you touch the left/right triangle from the top of the calendar, it will be changed into last month or next month.



(5)    When you enter a date and time and press the 『[F7]: complete』 key, the setting will be applied.
