4.2.14.1.1. Internal temperature of the controller

4.2.14.1.1. Internal temperature of the controller​



It offers an “internal temperature of the controller” as the monitoring information in the controller. The internal temperature of the controller displays the temperature of the Main B/D and the temperature of the CPU, which is measured in real time.

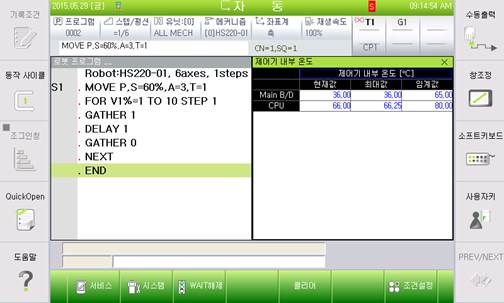

Figure 4.47 Display window of the internal temperature of the controller

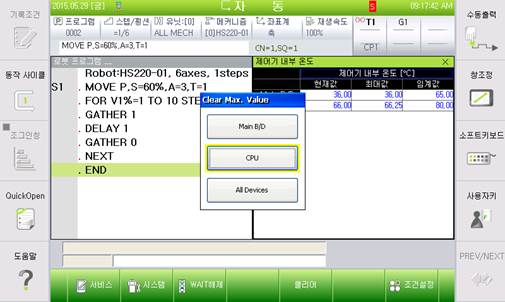

Figure 4.48 Initialization of the maximum internal temperature value of the controller



The current value of the internal temperature of the controller is the latest result, which is measured in real time. The maximum value indicates a maximum value of up to the present from the time of starting the temperature measurement. When you click the “Clear” menu from the bottom of the screen, a dialog box that can initialize the maximum value for each device appears.  When you select a device that you want to initialize the maximum value of, it initializes the maximum temperature of the device.
