4.2.11. Various data

4.2.11. Various data



This is the function to prepare the list of data you want and monitor in one window.

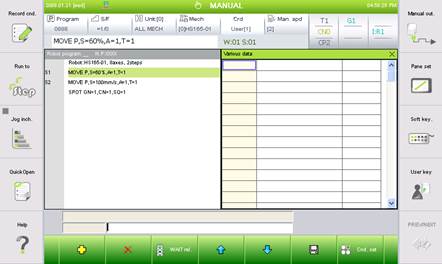

(1)   Select 『[F1]: Service』 → 『1: Monitoring』 → 『11: Various data』.

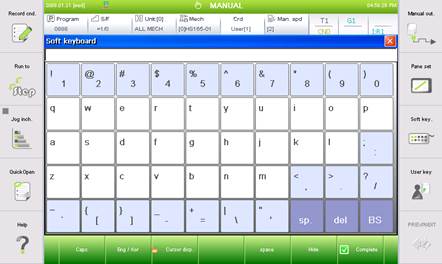

(2)   Set the cursor on the most left column and press the, [Soft keyboard] key to enter the name of the data.





(3)   The current value for the entered data is displayed respectively. For data of which a note is set, the note is automatically displayed as well.





(4)   For integer data, the current value is displayed in decimal format. If you add a suffix of “,x” at the end, it can be displayed in hexadecimal format.





(5)   When you press the 『[F1]: +』key, a blank item will be added right on top of the current cursor.



(6)   When you press the 『[F2]: x』key, the currently selected item will be deleted.



(7)   When you press the 『[F4]: Ý』/『[F5]: ß』key, the order of the currently selected item moves up/down.



(8)   When you press the 『[F6]: 』key, the entered condition is saved. That is, the entered condition will be saved even when the power is turned off.
