4.2.12. Work program HotEdit

4.2.12. Work program HotEdit



This is the function to edit the program during playback.

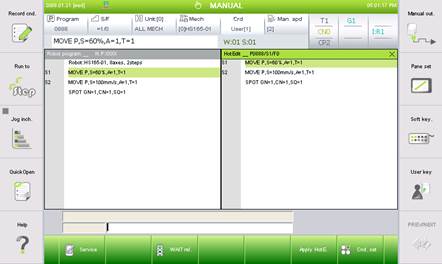

(1)   Select 『[F1]: Service』 → 『1: Monitoring』 → 『12: Work program HotEdit』.





(2)   After editing the program, select 『[F6]: Apply HotE.』.





l When you edit and apply the program that is currently in auto operation or program that will be called, it will be applied from the next cycle (After the program end is executed) and play back the robot with the edited program. Please take maximum precaution since the wrongly implemented editing can cause major accident such as collision between robot and jig.





○ Entry



You can enter the edit mode during operation even when the robot is operating by using the  [Quick Open] key or 『[F1]: Service』→ 『1: Monitoring』→ 『12: Work program HotEdit』.







○ Type of possible edit

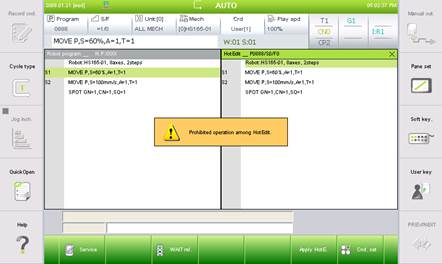

The operating method is the same as the operation in the manual mode, but the following function cannot be used and the applicable keys are ignored.



①    [Axis operation] key use

②    [REC] key (Record hidden pose MOVE)

③    [POS. MOD] key







○ Reflection

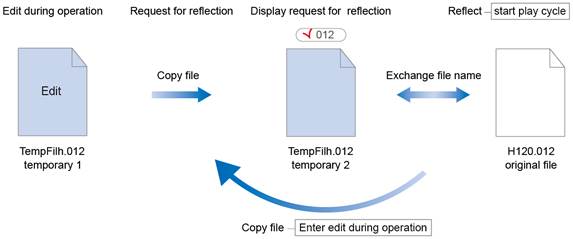

Figure 4.4 Edit during operation



Edit during operation is the method used by the user to edit the copy version by creating a copy, not the original file, for safety purposes.

When you execute edit during operation, the original file is copied as temporary file 1 as shown above. When the user edits the program and presses the 『[F6]: Apply HotE.』key, the temporary file 1 is copied as temporary file 2 and the reflection request is displayed. The reflection is applied by renaming the temporary file 2 with the file name of the original file.





The actual timing of the reflection is displayed in the following table.



Table 4‑1 Reflection timing

	Classification	Reflection timing
Executing during work	Work in execution Work executed by calling with CALL command	When the play cycle starts (All files requested for reflection are reflected.)
	Other work	Immediately request for reflection



If the program is not in execution or in operation, it cannot be edited. But if the program stops while in edit mode during operation, the reflection is requested but not reflected until the play cycle restarts.

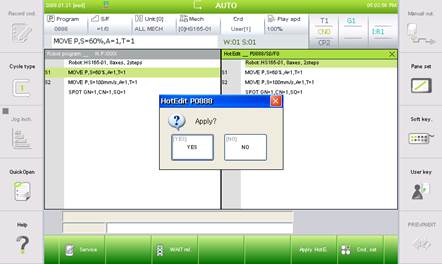

Press the [YES] key to first reflect the edit details during operation and press the [NO] key to cancel the request for reflection and delete temporary file 2 (Edit detail during operation).



At this time, if the program that used the CALL command was in progress, you must restart from the beginning because it is not a normal program flow.



○ Program counter information

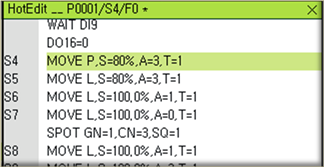

The following details are displayed on the title bar of the Hot Edit window.





①    Program number/Step number/Function number : This displays the location of the cursor used for editing in the edit during operation mode.



②    ‘*’: ‘*’ is displayed when edited from the original copy.



③    ‘>’: When the reflection request condition from the original copy is in effect, ‘>’ is displayed.









○ Select different program



When you press the [SHIFT] + [PROG] key, you can select a different program. You can also create a new program.
