4.2.6. Palletize data

4.2.6. Palletize data



When the palletizing function is used, the palletizing data indicates the work state of palletizing, pattern register number, palletizing counter, the number of total workpieces and workpiece size.

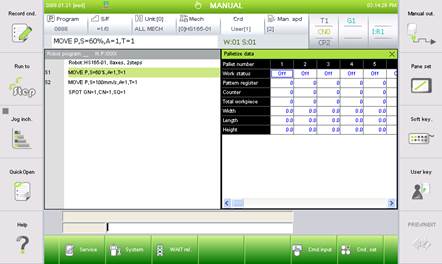

(1)   Selection 『[F1]: Service』 → 『1: Monitoring』 → 『6: Palletize data』.





(2)   To show unseen items, select the “Palletize data” window and press [SHIFT] + [Þ] and [SHIFT] + [ß].





l For palletization data monitoring, the palletization of 『[F2]: System』 → 『5: Initialize』 → 『3: Usage setting』 must be selected to <Enable>.



l For more details. refer to 『Hi5 Controller Palletize Function Manual』
