4.5. Data note

4.5. Data note



You can add a note for each relay of the embedded PLC. Set note is displayed on the various data monitoring windows and saved as *Resident Flash*datacmt.txt file. This file format is compatible with the function of 『Import relay description』/『Export relay description』 of HRLadder.

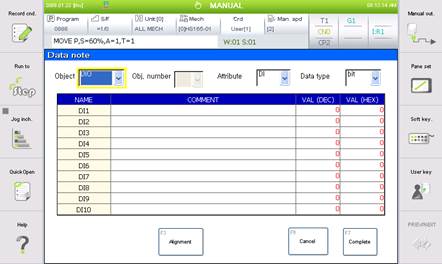

(1)   Select 『[F1]: Service』 → 『4: Data note』.





(2)   Yellow rectangular label shows which control is the focus of the current key pad operation. When you press the arrow key, you can move this focus to the prior/next control.

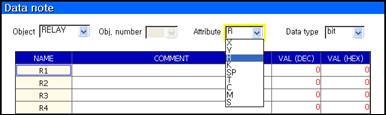

(3)   When you set the focus on the dropdown list on the top of the screen and press the [ENTER] key, the items that can be selected will be displayed. First, select the object and object number and then select the detail item through property.

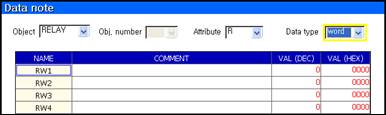

(4)   Adjust the data type dropdown list to change the display method.





(5)   When the focus is on the note table, you can use the arrow key [Ý] [ß] to move the cursor to another relay. When you press [SHIFT] + [Ý] [ß], you can move faster.





(6)   Enter the relay number next to the name and press the [ENTER] key to immediately move to the applicable relay.

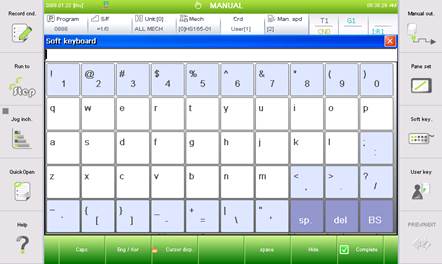

(7)   When you press the [Soft keyboard] key in the note column, you can edit the note.
