4.2.14. Operating information
4.2.14. Operating information

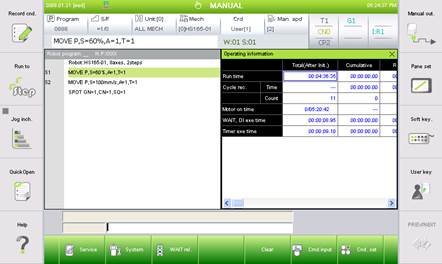

Operating information of the controller displays the information of previous cycle after the system is reset and then power turned back on.
Select 『[F1]: Service』 → 『1: Monitoring』 → 『14: Operating information』.
l Operating information clear
When the [Operating information] monitoring window is selected and activated, the 『[F5]: Clear』button be displayed. Press this button.

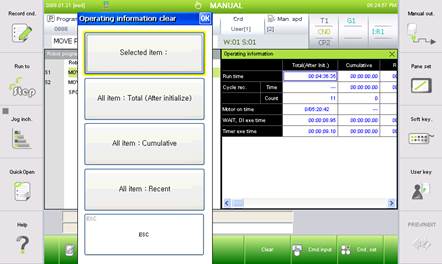

You can clear the operating information from the created message box.
Table 4‑2 Reflected timing
All (After resetting) | Measured time | Operation time from system reset to now |
Motor ON time | Motor ON time from system reset to now | |
Accumulative | Measured time | Operation time from power ON to now
|
Cycle recording time | Operation time from power ON to previous cycle
| |
Latest | Measured time | Operation time from start of cycle (Or power ON) to now
|
Cycle recording time | Operation time from start of cycle (Or power ON) to previous cycle
|
