4.7.7. Step copy

4.7.7. Step copy



This is the function to copy part of the program to another program or to the same program. The function recorded on the step is also copied at the same time and the step number designated with step jump (GOTO, GOSUB) is also automatically changed.

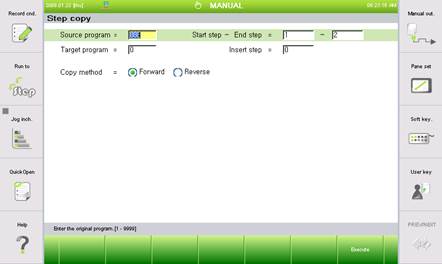

(1)   Select 『[F1]: Service』 → 『6: Program conversion』 → 『7: Step copy』.





(2)   Enter the data and press the [ENTER] key. And then press the 『[F7]: Execute』key to complete the process.





l  The following picture shows the case of copying the forward and reverse direction to step 2 of program 2 from step 2 to 5 of program 1.



Before copying	Copy from the source program (Program 1)     Paste to the target program (Program2)
After copying	Program2



Figure 4.13 Copy step





Before copying	Copy from the source program (Program 1)     Paste to the target program (Program2)
After copying	Program2



Figure 4.14 Copy step in reverse direction



l  Insert the program to after the insertion step number of the program to copy.



l  Because the step that includes the END copies the END function as well, you may need delete depending on the need.



l  You cannot copy the program that is protected.



l  If there is a step jump (GOTO, GOSUB) outside of the range to copy from the program to copy, the number will not change and you must change after the coping is completed.
