4.7.2. Record Speed

4.7.2. Record Speed

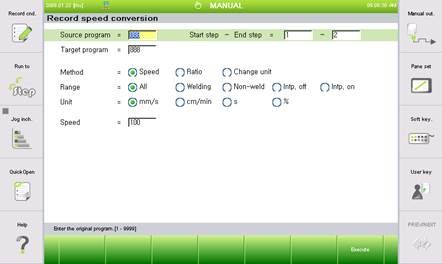

You can change the speed of several steps of the program at once.



(1)   Select 『[F1]: Service』 → 『6: Program conversion』 → 『2: Record speed』





(2)   To save the changed setting, press the 『[F7]: Execute』key. When you press the [ESC] key, the changed data will not be saved.



n Source program

Number of source program to change the speed.

(Default value is the program number currently selected)



n Target program

Number of the target program to newly save after changing the speed

If the number is the same as that of the source program, it will be overwritten.



n Start step ~ End step

Range of steps to change the speed. (Default value is 1~ End step)



n Method: Decide the speed designation method.

Speed designation: Batch conversion of recorded speed

Percentage designation: When the speed unit recorded is the same as the designated unit in [Unit], you can use this to convert to a specific percentage for the recorded speed

Unit conversion: Use this to convert the unit of the recorded speed



n Range

Select from the range (steps) to change the speed whether to apply to all intervals or just to the welding, non-welding, interpolation OFF (P) or interpolation On (L, C) part.



n Unit

If the [Method] is set to <Speed> or <Change unit>, then you can change the speed in the set unit here. If it is set to <Ratio>, it will convert to the ratio of the percentage only when the recording speed unit on the step is aligned.



n Speed: (Changes by the selection of [Method])

When the [Method] is set to <Speed>, it refers to the speed value and if set to <Ratio>, it refers to the percentage value.
