2.10.2. Axis Coordinate System

2.10.2. Axis Coordinate System​



Press the [ENABLE] switch of the teach pendant when the motor is turned ON in MANUAL mode.



Press the coordinate system key of the teach pendant so that the coordinate of the status bar shows the axis. When you press the axis operation key, the robot will operate as follows.

When you operate the robot in the axis coordinate, each axis of the robot will move independently.

For proceeding direction of the robot by the axis operation key, refer to the 2. 10. 1 JOG operation key.

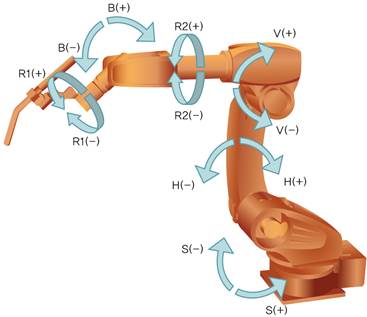

Figure 2.49 Axis Coordinate System
