2.7. Error Information



You can know contents and measure method about error occurred by pressing the [Help] key when all types of error such as system error or operation error.



Error occurred is displayed in following method if error occurs in the Hi5 controller.

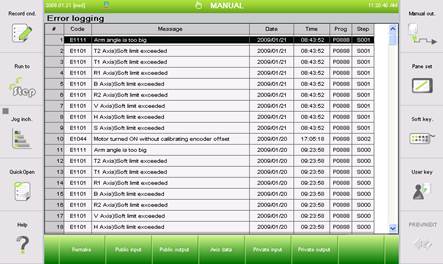

(1)   Up to 100 errors recently occurred are recorded in『[F1]: Service』 →『7: System diagnosis』 → 『2: Error logging』.



(2)   Numbers and messages about errors are displayed when all types of error occur in the Guide frame as below screen :

Items with yellow background refer to the newly generated errors.





Figure 2.44 Error display screen

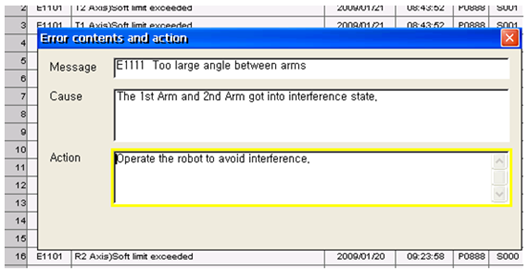

(3)   You can know contents and measure methods about error occurred by pressing the [Help] key of teach pendant as in following screen :



Figure 2.45 Error detail and action
