7.4.2. Average function

7.4.2. Average function

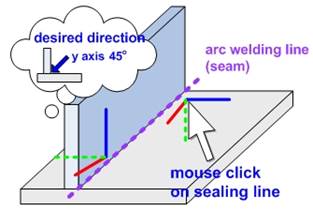

For sealing or arc welding, it is common to create steps on V type seam not the flat surface. When you use the surface vertical function, the direction of the step may be improper as shown below.







Select the average checkbox and click on surface, it will get the surface vertical directions of the clicked location and the locations apart, and make average direction of step with these 5 directions. (When you use the average function, the response to the surface click becomes slower.)





Sometimes when the direction is inappropriate even by using the average function, manually modify it.
