7.7. Connect HRView and HRLadder​



HRView and HRLadder can be connected to HRSpace virtual controller in the same PC. (It can also be done in different PCs. In this case, the 2 PCs should be connected via Ethernet.)

Communication between support software and the virtual controller is only done via Ethernet device and doesn’t support RS-232C.

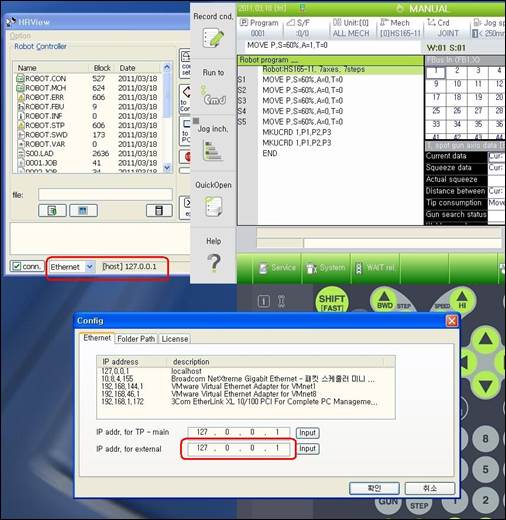

A picture as below is an example that HRView and a virtual controller are connected in one PC. It shows all back up controller files from onsite copied to a virtual controller via HRView.



“IP address for external” of virtual TeachPendant should be the default value, “127.0.0.1”. (127.0.0.1 is the standard IP address that represents local host (i.e. this computer).

For HRView, don’t change the exiting IP address of PC and let “127.0.0.1” be IP address of a robot controller.

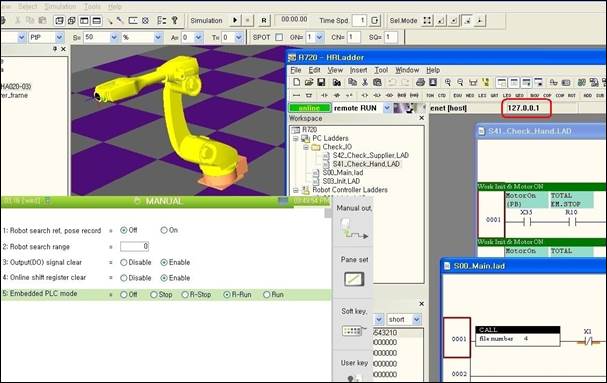

A picture as below is an example that do download and monitoring by connecting HRLadder to the virtual controller of HRSpace3.



For HRLadder, don’t change the exiting IP address of PC and let “127.0.0.1” be IP address of a robot controller.
