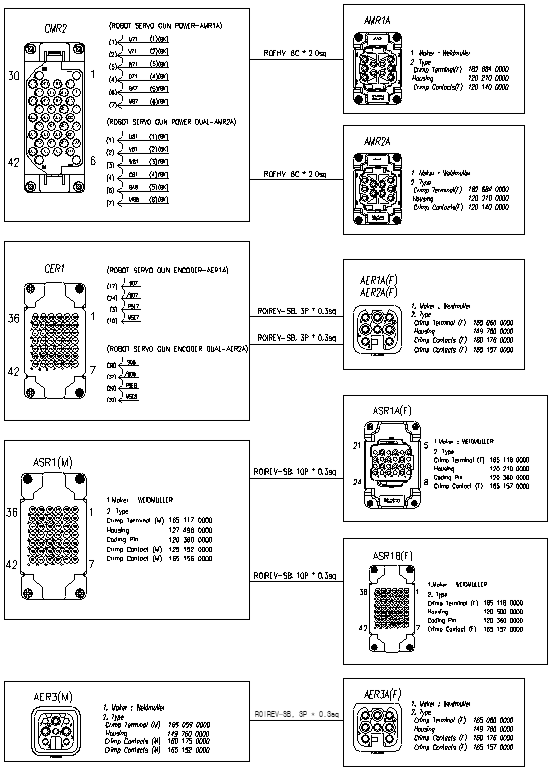

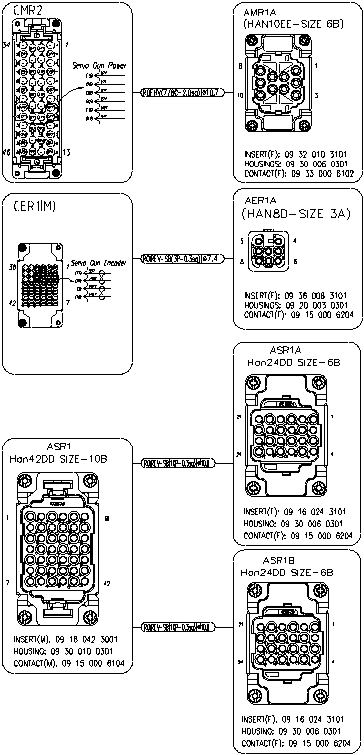

2.8. Application Wiring and Inspection Wiring Diagram

There are air unit and connector to connect the additional equipment to the robot manipulator.

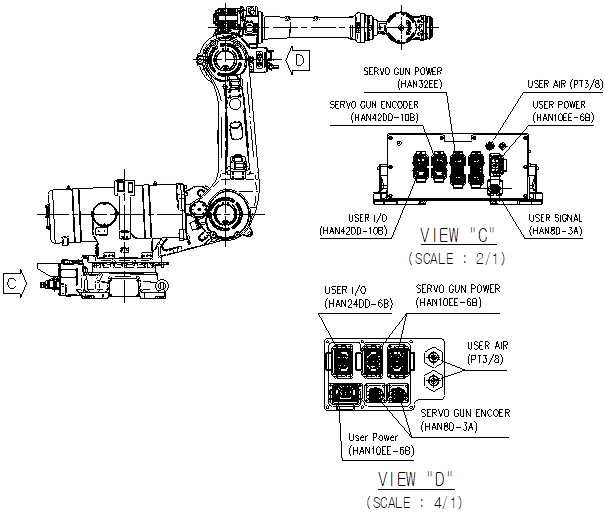

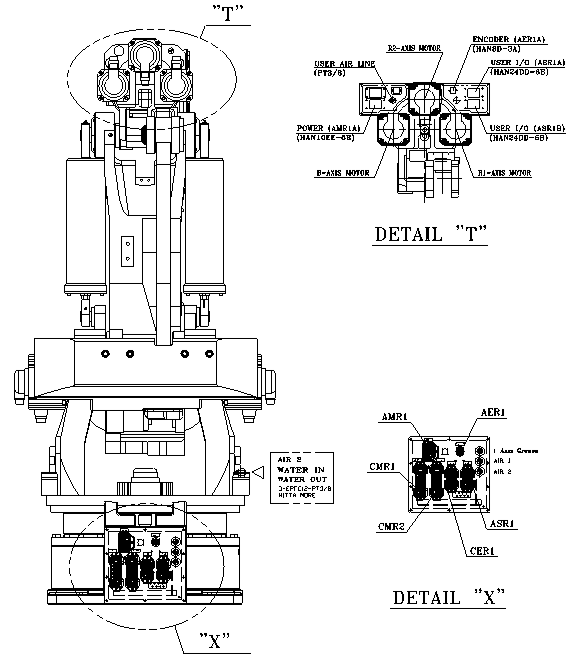

Application connectors are indicated as follows.

[Note] Max air pressure of air connection : 5bar (5.1 kgf/cm2 , 72.5 psi)
