2.4. Robot Dimension and Working Envelope

2.4. Robot Dimension and Working Envelope​



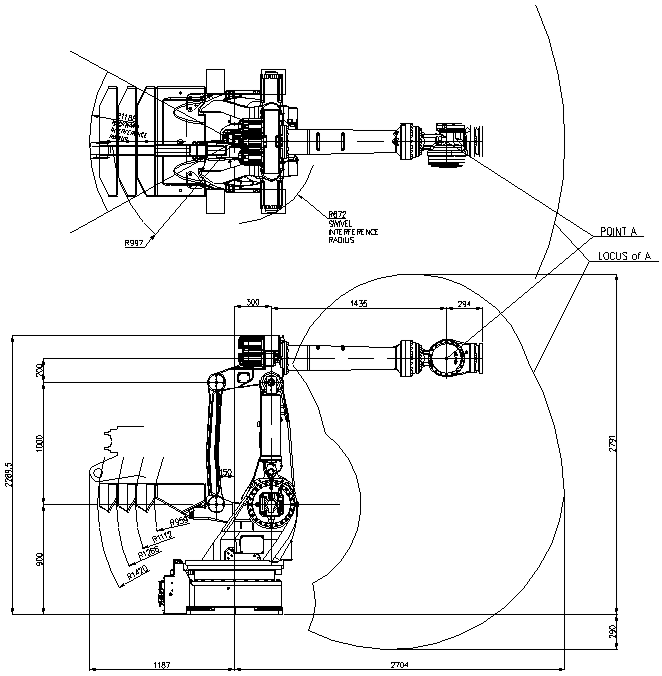

Figure 2.3 Robot Dimension and Working Envelope: [HX300]

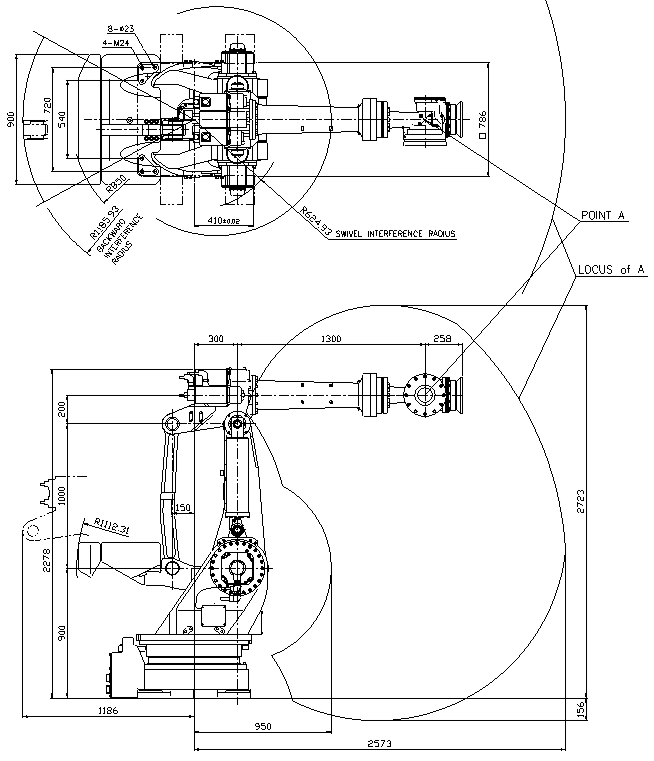

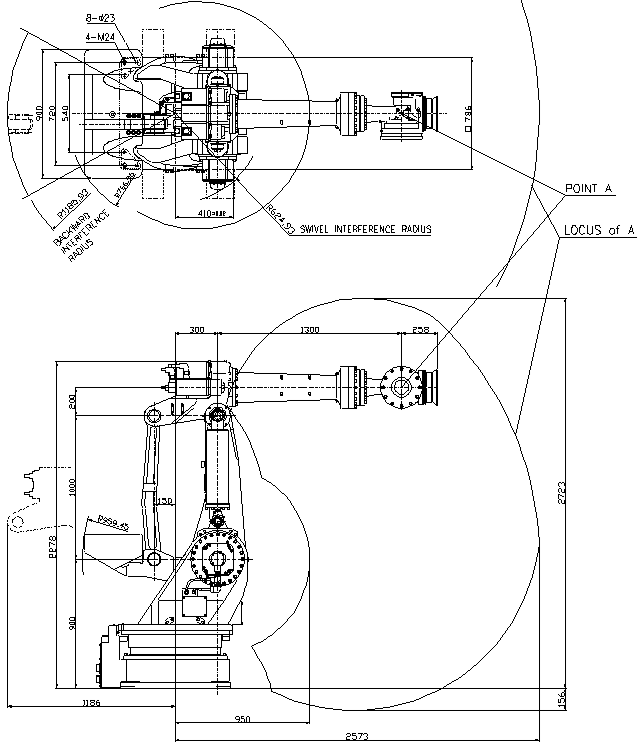

Figure 2.4 Robot Dimension and Working Envelope: [HX400]

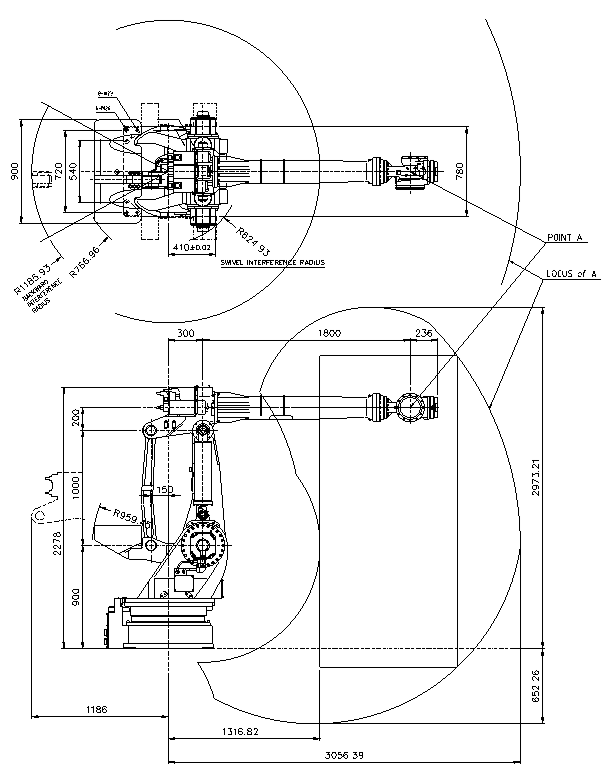

Figure 2.5 Robot Dimension and Working Envelope: [HX200L]

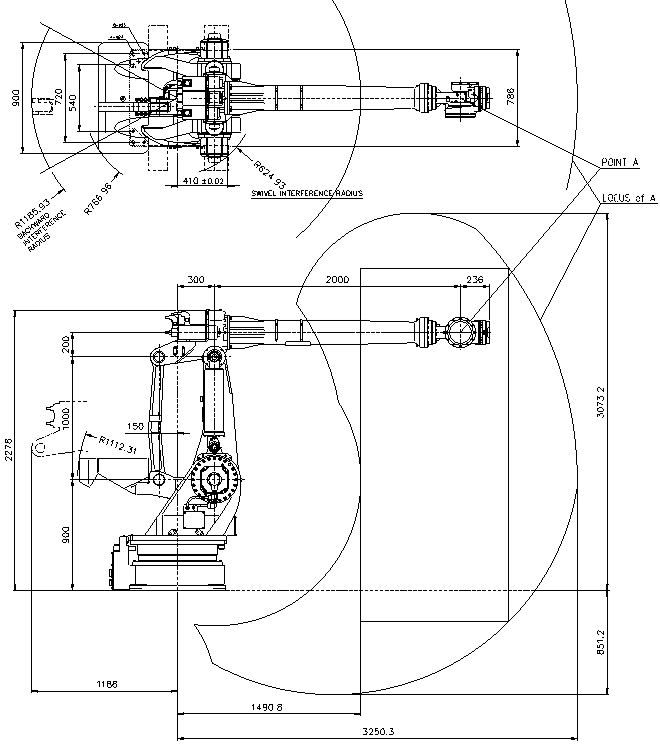

Figure 2.6 Robot Dimension and Working Envelope: [HX200L-2000]

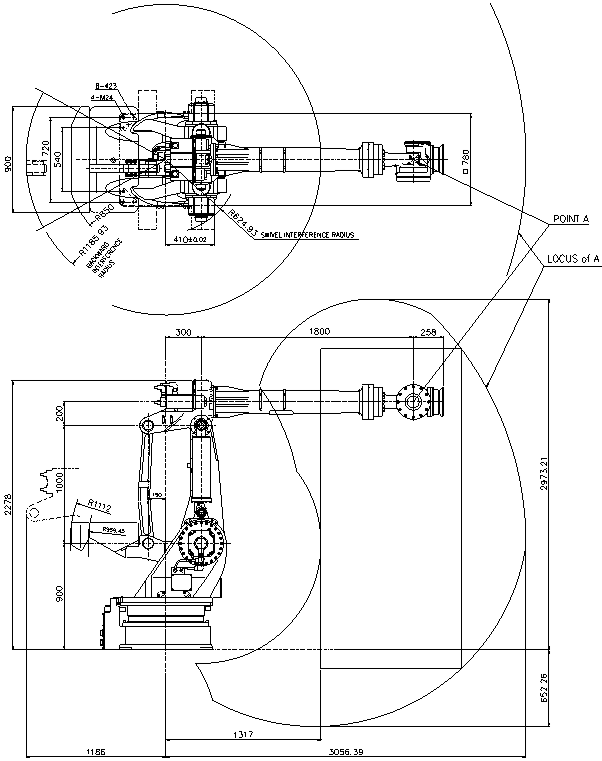

Figure 2.7 Robot Dimension and Working Envelope: [HX300L]





Figure 2.8 Robot Dimension and Working Envelope: [HX500]
