4.8.1.1. Main board

4.8.1.1. Main board​



(1)   Prepare the USB memory with the new files to update the version with. It is convenient to select the files if they are located in the following directory.



{USB Memory}/hi5/bin/hi5main*.hdi



(2)   Install the USB memory to the teach pendant. When the USB memory device is recognized, the icon will appear on the title bar of the teach pendant screen.



(3)   Enter the 『[F1]: Service』 → 『7: System diagnosis』 → 『1: System version』screen.



(4)   Locate the cursor on the main item and check with the [ENTER] key. <Current> row displays the version and date of the current S/W installed on the main board.





(5)   The new file you want must be displayed in the <New file to upgrade> row. If the file you are trying to select has the same path and file name as shown in the following table, you can easily select the applicable file by switching the file name by pressing the 『[F4]: Refresh』 key.



T/P software

{USB memory}/hi5/bin/hi5tp*.exe

Main board software

{USB memory}/hi5/bin/hi5main*.hdi or

{USB memory}/hi5/bin/hi5sim*.hdi

DSP I/O

{USB memory}/hi5/bin/sv5_*.hex

System I/O

{USB memory }/hi5/bin/bd530v*.hex

User I/O

{USB memory }/hi5/bin/bd580v*.hex

Arc Welding Interface

{USB memory }/hi5/bin/bd584v*.hex

CC-Link

{USB memory }/hi5/bin/bd570v*.hex

Conveyor Interface

{USB memory }/hi5/bin/bd585v*.hex

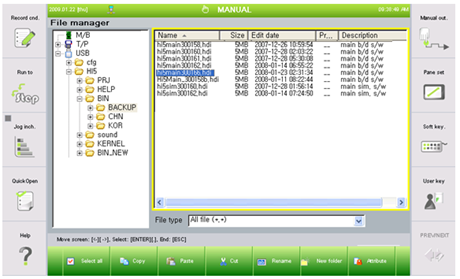

(6)   When the file is located in a different directory, press the 『[F3]: File select』key to open the file selection message box to find the file. Set the cursor on the file you want and press the [ENTER] key to display the path and name of the file selected from [New file to upgrade].





(7)   Now press the 『[F2]: Ver. up』to carry out the version updating. During the version-up process, you should follow instructions, without doing any operation.
