5.9.2.6. Power Connector CNP1
5.9.2.6. Power Connector: CNP1
Power is supplied to the board through CNP1 connector. Figure 5.65 describes the exterior and pin allocation of CNP1.

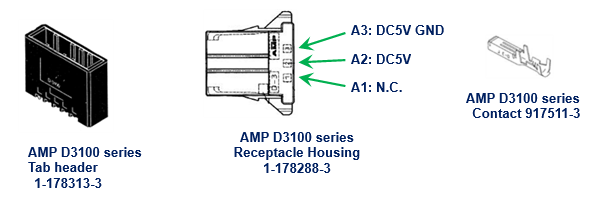

Figure 5.69 Power Connector CNP1 of Analog Board (BD584)
Table 5‑38 Pin Configuration of Power Connector CNP1 on Analog Board (BD584)
Number | Name | Use | Remarks |
A1 | N.C. | No connection |
|
A2 | DC5V | DC 5V power |
|
A3 | DC5V GND | DC 5V power ground |
|
