5.9.1. Outline

5.9.1. Outline



The Analog/Arc IF board provides the analog input/output and digital input/output required to connect with external devices. The specification of the basic board is as follows.



l Digital input: 8 points



l Digital output: 8 points (Photo MOS type)



l Analog input: 8 points (12-bit resolution)



l Analog output: 8 points (12-bit resolution)



l Analog stick check function

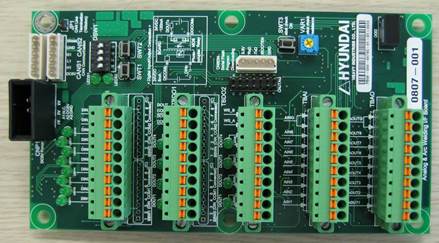

Figure 5.56 Analog/Arc IF Board (BD584)



The board is 86mm(L) x 156mm(H) in size, and has many functions, which are shown in Figure 5.57 below.

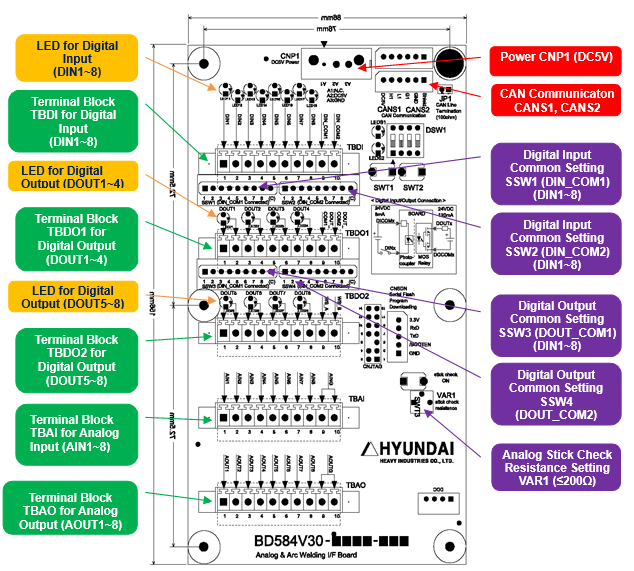

Figure 5.57 Configuration of Analog/Arc IF Board (BD584)
