5.9.2.5. Analog Stick Check​

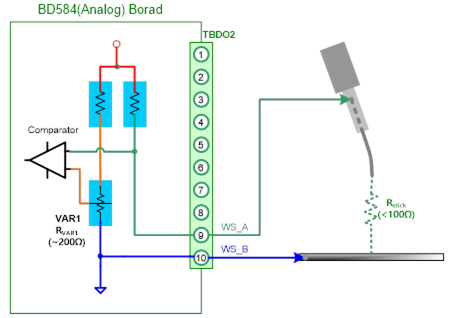

The board includes a function to check the wire stick of the arc plate through an analog method. As shown in the Figure 5.64 below, connect to #9 (WS_A) and #10 (WS_B) of TBD02 to check the stick. The criteria for checking the stick can be set up to 200Ω by using the variable resistance VAR1 of the board.





Figure 5.68 Analog Stick Check Function on Analog Board (BD584)
