5.1.8. A1 Frame - Gear Box

5.1.8. A1 Frame - Gear Box





n  Grease Replacement



(1)    In the case of an arm frame gearbox, do not replace grease until after 6–7 years (or after an overhaul), which is the normal replacement interval.

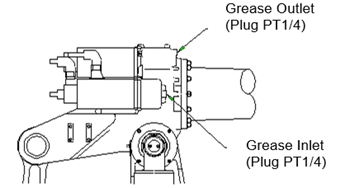

(2)    When replacing all the grease in the gearbox, remove the used grease by dismounting the R2/B/R1-shaft motor. Then, fill with new grease. For the detailed work method, contact us.

(When dismounting the motor, the point of origin should be realigned because the tool position will be changed.)



ü  Grease type: GADUS S2 V46 2 ü  Amount of grease: 1,900 cc (1,710 g)



n  Procedure in discharging excessively fueled grease and residual pressure after grease replacement and injection



Arm gear box

60°/120°/60° or more

100 %

Minimum of 20 minutes

.
