5.1.1. S-AxisReduction Gear​





Attention



If grease is added without removing the outlet plug, the grease will go inside the motor and may damage it. It is absolutely necessary to remove the plug.



n  Grease Replenishment

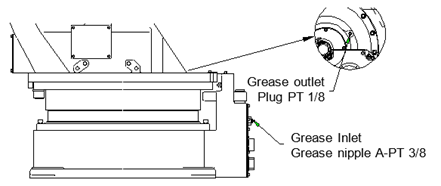

①    Remove the grease outlet plug.



②    Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0

ü  Amount of grease : 500cc(450g)



Caution



If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



③    Wipe the outlet port with a cloth and attach the plug with seal tape.



n  Grease Replacement



①    Remove the grease outlet plug.



②    Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0

ü  Amount of grease : 3,650cc(3,285g)



③    The grease replacement is complete when new grease appears in the outlet port. The new grease can be distinguished from the old one by color.



④    Move the S-Axis for a few minutes to eject the old grease and then add grease until the new grease appears in the outlet port



⑤    Wipe the outlet port with a cloth and attach the plug with seal tape.
