5.1.4. R2-AxisReduction Gear

5.1.4. R2-AxisReduction Gear





Attention   Do not inject excessive grease. The excessive grease would cause an abnormal operation.



n  Grease Replenishment

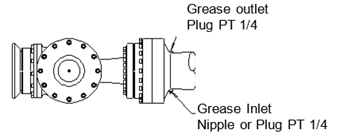

①    Prepare a grease nipple A-PT1/4.



②    Remove the grease outlet plug.



③    Remove the grease inlet plug and install grease nipple A-PT1/4.



④    Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease : 250cc(225g)



Caution   If the specification of the currently filled grease is MOLYWHITE RE00, you must fill the VIGO GREASE RE0 grease after more than 100 hours of operation.



⑤    Wipe the outlet port with a cloth and reinstall the inlet/outlet plugs with seal tape



n  Grease Replacement



①    Prepare a grease nipple A-PT1/4.



②    Remove the grease outlet plug.



③    Remove the grease inlet plug and install grease nipple A-PT1/4.



④    Inject the grease into the grease inlet using a grease gun.



ü  Grease type : VIGO GREASE RE0 ü  Amount of grease : 1,100cc(990g)



⑤    The grease replacement is complete when new grease appears in the outlet port. The new grease can be distinguished from the old one by color.



⑥    Wipe the outlet port with a cloth and reinstall the inlet/outlet plug with seal tape.
