5.1.10. S axis Cross Roller bearing

n Grease Replenishment

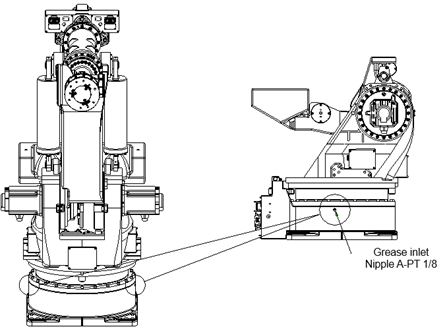

(1) Prepare a grease nipple A-PT1/8

(2) Remove any foreign substances on the inlet of the nipple if needed.

(3) Inject the grease into the grease inlet using a grease gun

ü Grease type: GADUS S3 V220C 2

ü Amount of grease: 5cc (Max. 15cc)

(4) Remove grease nipple A-PT1/8 from grease inlet port
