4.3.6. Program reservation execution

4.3.6. Program reservation execution



When reserving the program through external signal and executing the program in order, this is the function to check, change, insert or delete the currently reserved program. When reserving the program through external signal and executing the program in order, this is the function to check, change, insert or delete the currently reserved program. Depending on the setting, 20 or 1 program can be set for reservation wait. If a program is executed through the remote control once after the setting is finished, the reserved program will be automatically executed after the currently running program ends.

For more details, refer to 『Hi5a Controller “Program reservation execution” Function Manual』.



(1)    Selection『[F1]: Service』 → 『2: Register』 → 『7: Program reservation execution』.

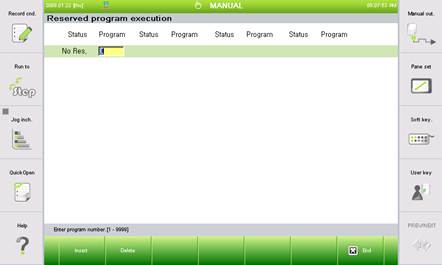

Figure 4.68 Program reservation execution screen





(2)    『[F1]: Insert』: Add or insert the reserved program.



(3)    『[F2]: Delete』: Delete the reserved program.







l This menu will be activated when the sensor synchronization function is set for the use of conveyor or press.

l This menu will not be activated if 『Applied register count』 is set as “Enable” in 『[F2]: System』 → 『2: Control parameter』 → 『8: Program reservation execution』.
