4.3.3. Online shift register

4.3.3. Online shift register



On-line shift register group stores shift amount received from external devices or palletizing length and spin value. There are eight groups in total.



(1)    Selection『[F1]: Service』 → 『2: Register』 → 『3: Online shift register』

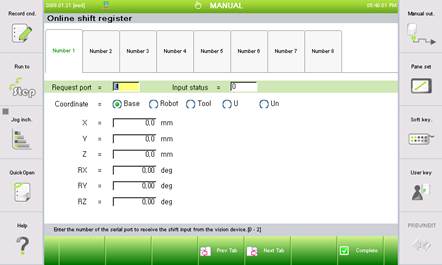

Figure 4.65 Online shift register screen





(2)    Input data and press [ENTER]. To store changed setup, press 『[F7]: Complete』. If [ESC] is pressed, changed data will not be stored.



n Request port: Sets serial port number which receives shift amount from external devices



n Input status: It is set as 1 if the shift amount is reflected into the step position data.
