3.1.4. Status flag

3.1.4. Status flag

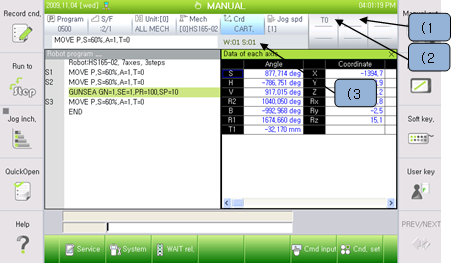

Various statuses related to spot welding will be displayed, as shown in the following screen.





n (1) Gun number

The relevant item displays the currently selected gun number, multi-gun number and the state of the servo gun detachment state (). For example, if it is displayed like G5,6, it means that the stationary gun #5 and #6 are selected to carry out the welding at the same time. In addition, when the lock icon is displayed, it means that the servo gun is disconnected.



n (2) Tool number

This displays the tool number which corresponds to the gun number currently selected. This indicates that when the gun number is changed, the tool number will be changed automatically to the tool number set from 『[F2]: System』 → 『4: Application parameter』 → 『1: Spot welding』 → 『1: Tool No. corresponding to Gun No., and gun-type set』.



n (3) Welding condition, welding sequence (panel thickness)

This displays the currently selected welding condition number and welding sequence number.

It displays the thickness of the currently set panel. The information should be set correctly because the servo gun axis position will be created automatically based on the panel thickness when the servo gun welding step is recorded. It is also possible to carry out recording manually through R220. When the welding step is to be recorded after [Manual squeeze], the setting will take place automatically by taking into consideration the current gun position.
