3.1.1. Spot-gun axis data​

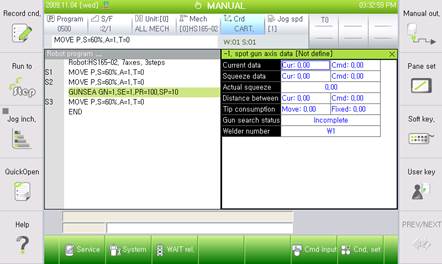

This displays the real time data related to the currently selected spot gun. In addition, the gun type for the gun number can be confirmed from the title bar.

(『[F1]: Service』 → 『1: Monitoring』 → 『4: Spot welding data』 → 『1: Spot gun axis data』)





n Current data (Servo-gun)

Displays the feedback current that flows through the servo gun axis and Cmd displays the command current for the current limit



n Squeeze data (Servo gun)

Converts the command current and feedback current into squeeze force by using the ‘welding gun parameter squeeze force – current table’ and display the converted data. Cmd shows the command squeeze force and Cur shows the feedback squeeze force.



n Actual squeeze (Servo-gun)

Displays average squeeze force from the point of squeeze alignment to the point of opening (Kgf)



n Distance between tips (Servo-gun)

Displays the distance (mm) between tips from the axis origin (mm).



n Tip consumption (Servo-gun, EQless-gun)

Displays consumption detected by gun search (mm) (For EQless-gun, only the fixed side tip consumption is managed)



n Gun search status (Servo-gun, EQless-gun)

Displays whether the gun search is executed.



n Welder number

Displays the welder number for the currently selected gun number



n SvClamp(Servo-gun)

Displays the state of the clamping operation of the currently selected gun’s clamping.
