This part describes the user key related to spot welding. Please refer to the operating manual for the Hi5a controller for the method of registering and using the user key.

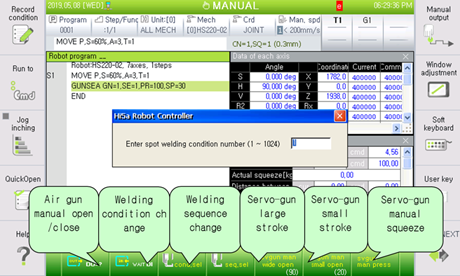

n Air gun manual open and close

This enables the manual opening and closing of the air gun by displaying the MX signal.



n Welding condition change

This enables manual changing of the currently selected welding condition number.



n Welding sequence change

This enables manual changing of the currently selected welding sequence number.



n Servo-gun large stroke

This manually moves the servo gun to the large stroke position



n Servo-gun manual open and close

This manually moves the servo gun to the small stroke position



n Servo-gun manual squeeze

This enables manual squeeze of servo-gun.
