3.1.3. Spot welding operating information

3.1.3. Spot welding operating information​

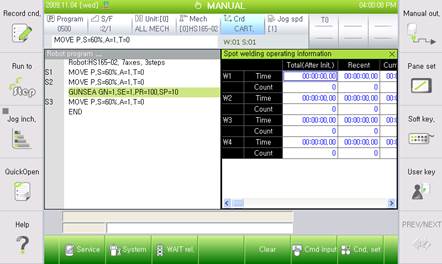

Welding time and the number of welds for the welder currently in use can be confirmed. This displays the 3 items from the controller initialization up to the present status (total), the current cycle in execution (recent), and from the power input to up to present (cumulative),

(『[F1]: Service』 → 『1: Monitoring』 → 『4: Spot welding data』 → 『3: Spot welding operating information』)







n Spot welding operating information clear

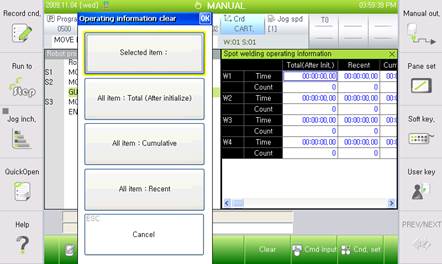

When spot welding operating information window is activated, the 『[F5]: Clear』button will be displayed. When this button is pressed, the operating information clear dialog box will be displayed, as shown in the following screen. Click the button of the item to be cleared to clear its information.
