7.1.2. Wide screen monitoring

7.1.2. Wide screen monitoring



When the welding data wide-screen monitoring function is used, the teach pendant will show the welding data as shown below. With the wide-screen monitoring function, some important data of [7.1.1. Monitoring in detail] will be indicated in large fonts. The window for the function can be designed in a way that it will pop up automatically in the middle of welding. It is possible to monitor the data only when performing the welding work. Refer to ’7.1.4 Operation’ for details for setting the automatic window pop-up for the wide screen monitoring.

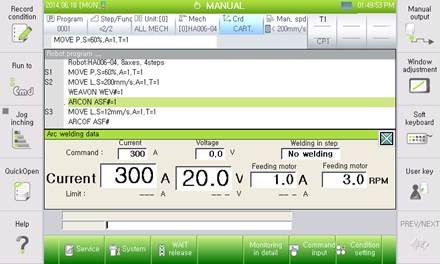

Figure 7.2 Arc welding wide screen monitoring.
