5.8. Download

5.8. Download



(1)   When all settings have been made, download all network settings to the master module. Click and select the picture of the master module first, and select 『Online – Download』from the menu. If the connection is made, a message will be displayed as shown in [Figure 5.23].



(2)   If you click [Yes (Y)] here, the download will be executed, as in [Figure 5.24].



(3)   Refer to [Note 5-3: Establishing communication] if a dialog box of a different type is displayed.

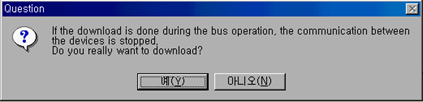

Figure 5.23 Advance message for fieldbus operation stop

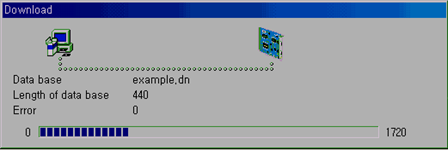

Figure 5.24 Executing download



(4)   After downloading, turn the Hi5 controller off and on. Confirm that the fieldbus is operating normally. If the fieldbus is operating normally, the RS-232C cable can be separated. (Separate it when the Hi5 controller is turned off.)
