14.6. Welding auxiliary condition – Automatic stick recovery

14.6. Welding auxiliary condition – Automatic stick recovery



The following edit screen will be displayed when pressing [F1: Aux. cnd] key in 『[Welding start condition] → [F2: End cnd]』 dialog box while arc welding is set to digital.

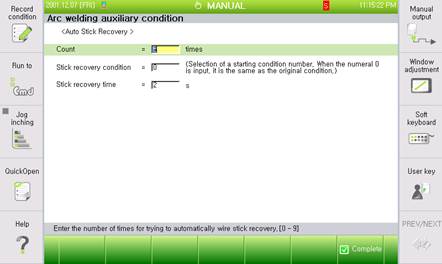

Figure 14.8 Automatic stick recovery dialog box





Wire could be stuck to the base metal when welding is completed. The automatic stick removal condition is for setting a function for allowing stick to be removed automatically.



The content per each item of the automatic stick recovery condition is as follows.



(1)   Counter: [2] time ( Range : 0 ~ 9 times)

It is the maximum number of times to repeat stick recovery processing. In case this is set to 0, stick recovery will not be tried and the stick error (“E1262 Wire stick detecting”) will be generated immediately. Even when stick is not removed within the set count, the same error will be generated.



(2)   Stick recovery condition: [ 0]  ( Range : 0 ~ 32 )

It is the welding start condition number to be used for stick recovery processing. Stick recovery will be tried based on this condition of the relevant condition. Except, in case the condition number inputted is “0”, Stick recovery will be tried based on the main condition of current welding start condition.



(3)   Stick recovery time: [  2] sec (Range: 0.00 ~ 9.99 )

It is the time to output stick recovery condition. In case this time is too short, stick recovery will not be executed.
