11.1.2. Wide screen monitoring

11.1.2. Wide screen monitoring



Through the function of wide screen monitoring, the welding data will be produced on the teaching pendant as shown in [Figure 11-2]. This function will help display key data in large characters among the data gained through the‘1) Monitoring in detail’ function. The window for the function can be designed in a way that it will pop up automatically in the middle of welding. It is possible to monitor the data only when performing the welding work. Refer to ’11.2 Operation’ for details for setting the automatic window pop-up for the wide screen monitoring.

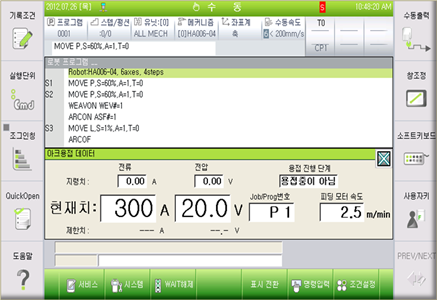

Figure 11.2 Arc welding wide screen monitoring.
