2.8.3. Routine Test
2.8.3. Routine Test
Table 2‑5 Routine Test
No. | Test | Contents |
1 | Functional Test | The performance of Safety devices is tested |
2 | Leakage Test | With the air outlet valve closed and Robot internal pressure is set maximum overpressure, the leakage flow rate is measured at the inlet point |

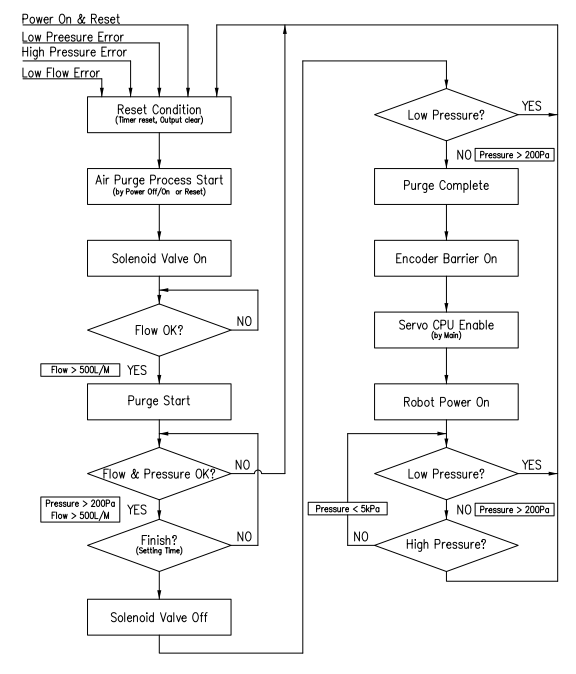

Figure 2.9 Purge Flow Chart
