2.7. Detail diagram of attachment surface of Arm

2.7. Detail diagram of attachment surface of Arm



There is a tap on the top of the arm pipe of the robot to attach any peripheral device.

When used with the arc welding, the wire supply device must be installed on the 1st arm.



[Handling precautions]



Attach so that the center of gravity is positioned within the allowable range.



n Maximum load of Arm Pipe/Upper Frame : each of 15kg

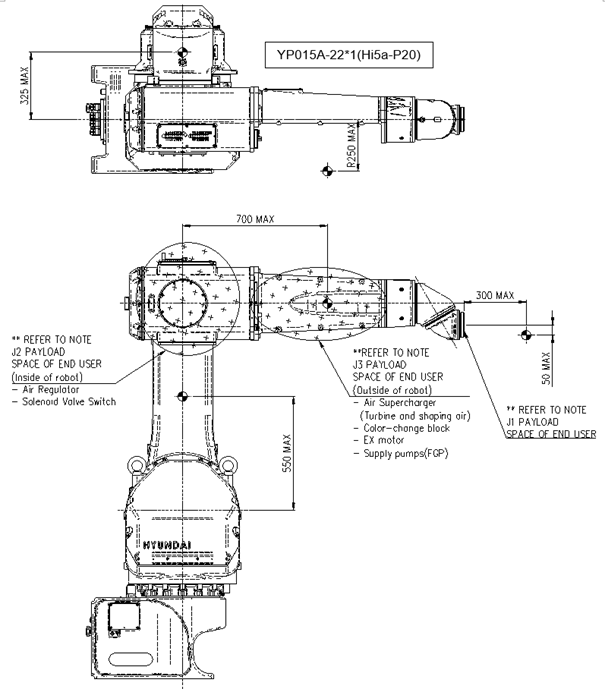

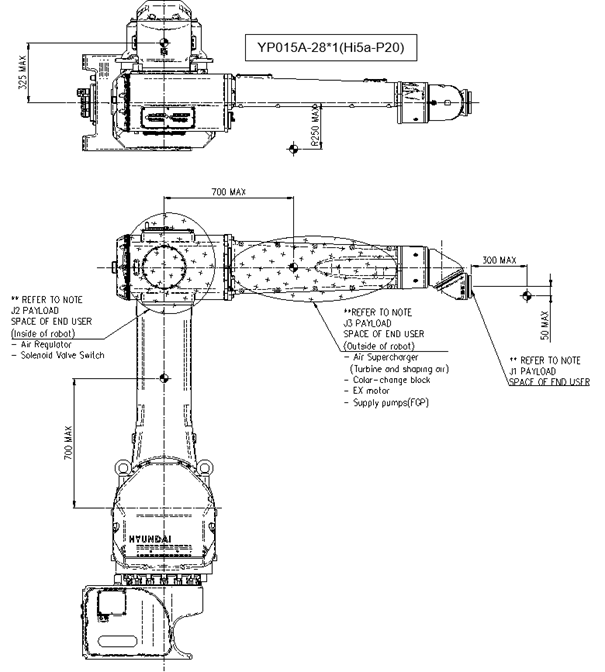

Figure 2.7 Detail diagram of attachment surface of arm
