2.8. Wiring and Piping Diagrams for Applications

2.8. Wiring and Piping Diagrams for Applications



On the manipulator, there are connectors and air units for connecting additional equipment.

The following figures show the user application connectors.



[Note] Maximum air pressure: 5 bar (5.1 kgf/cm2, 72.5 psi)

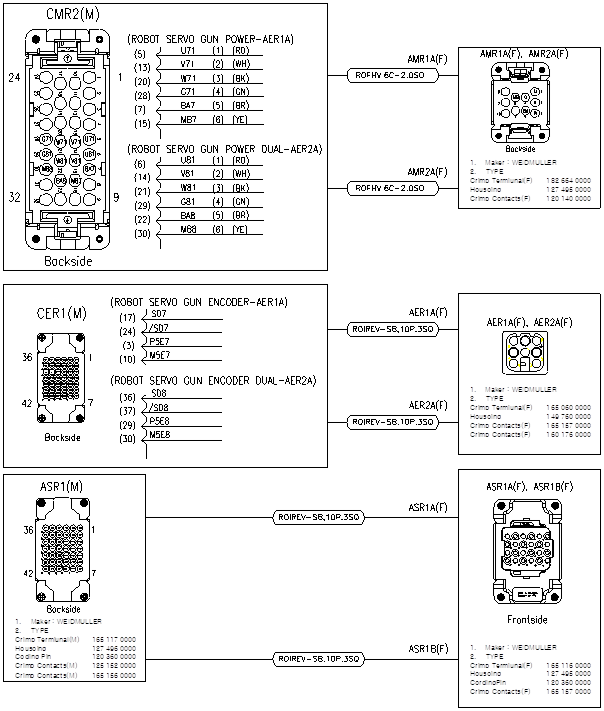

Figure 2.9 Wiring and Piping Diagrams for Applications

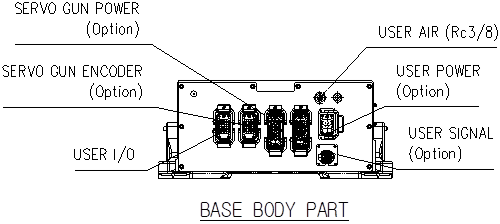

Figure 2.10 Wiring and Piping Diagrams for Applications





Figure 2.11 Details of Application Connectors
