2.4. External Dimensions of the Manipulator and the Operation Area

2.4. External Dimensions of the Manipulator and the Operation Area​





Figure 2.3External Dimensions of the Manipulator and the Operation Area(HS180/HS220)

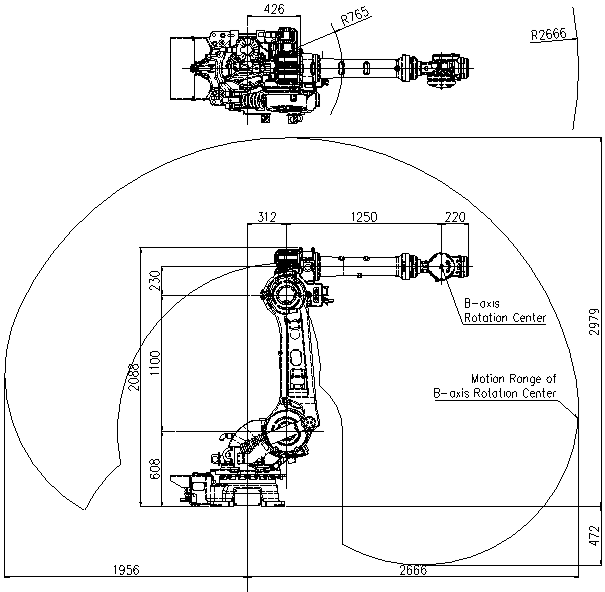

Figure 2.4External Dimensions of the Manipulator and the Operation Area(HS160L)
